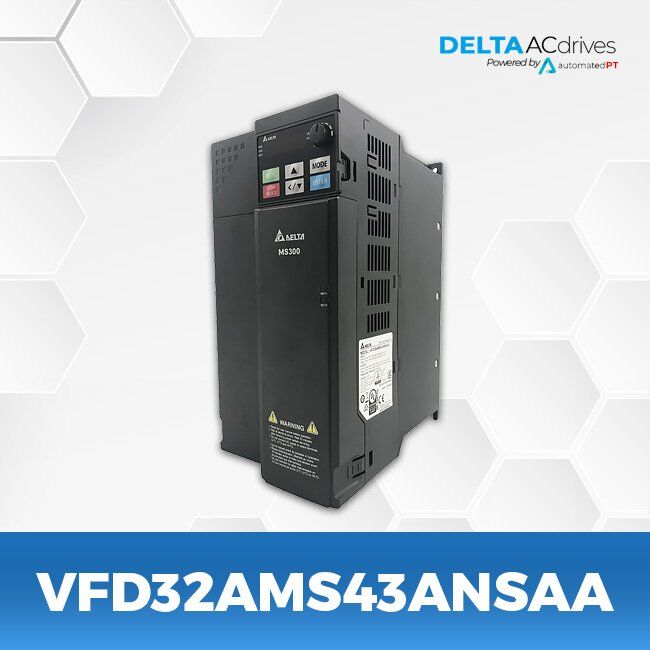

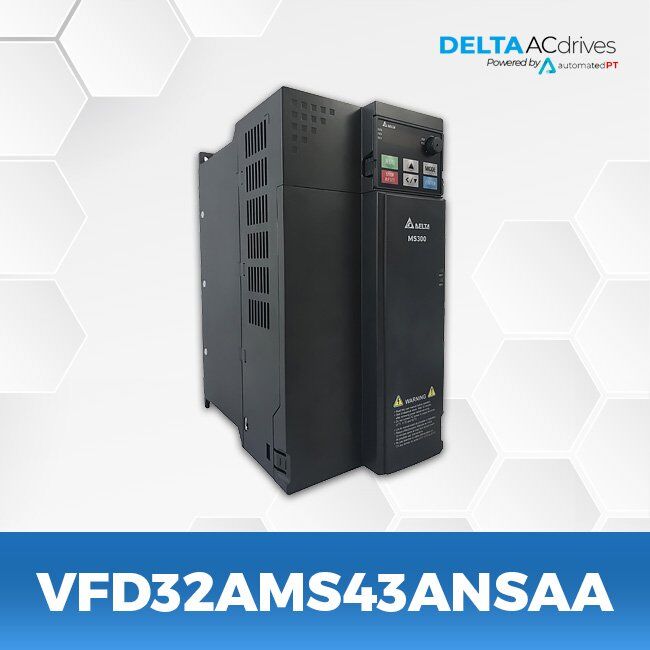

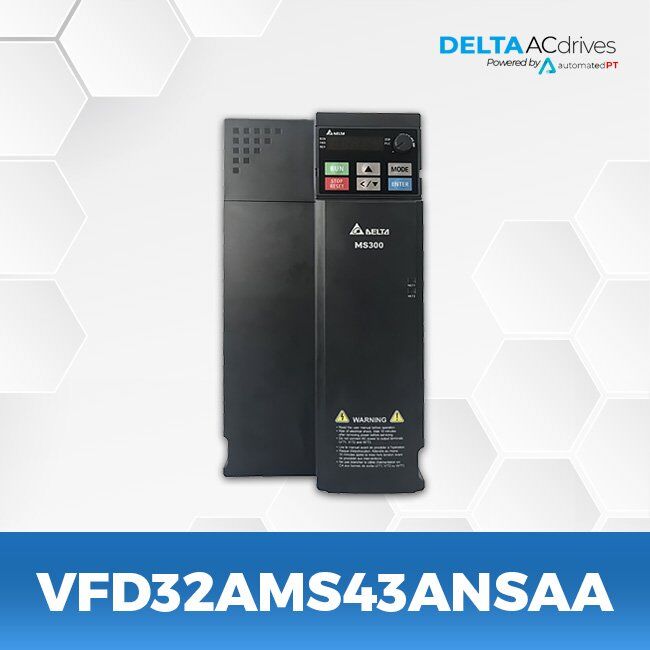

Delta MS300 VFD32AMS43ANSAA

Standard Models (0-599 Hz) Without EMC Filter
delta VFD ms300 Micro Drive
Part Number: VFD32AMS43ANSAA
$883.00
Nominal Input VAC: 480 Volts AC
Input Range VAC: 380 to 480 Volts AC
HP: 20 HP
Amps (HD): 32A
Amps (ND): 36A
Input Phase : 3PH
Operator Controls : Sold Seperately, See Accessories
Brake Type : DC Injection; Dynamic Braking
Motor Control-Max Level: Open Loop Vector-(Sensorless Vector)
Closed Loop: NO
AC Line Regenerative: NO
Dynamic Braking Trans: Included
Enclosure Rating: IP20
Frame Size : E1

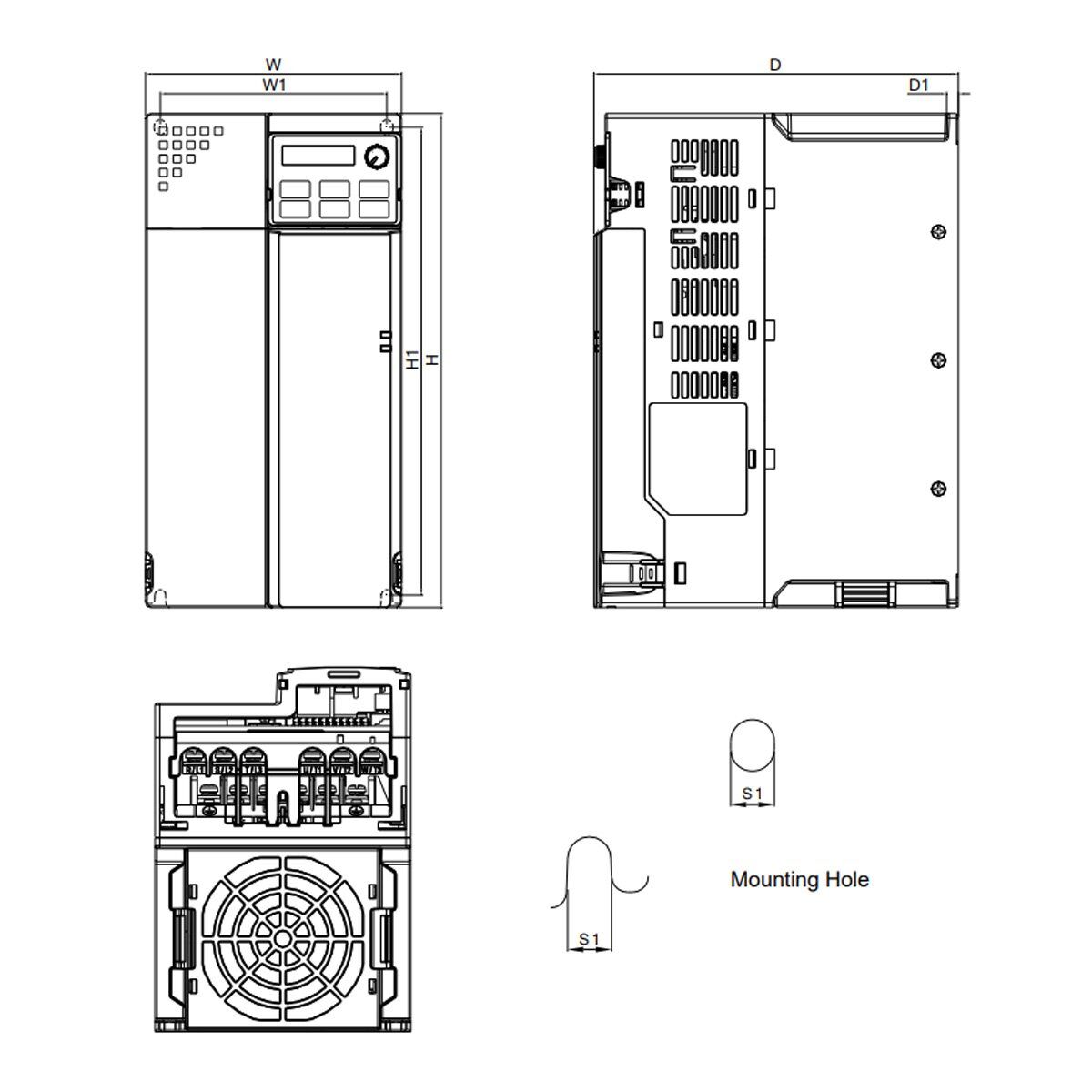

H x W x D (inches): 9.84 x 5.12 x 7.84

Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system —all included in the MS300 series with drive size reduced up to 40%.

Delta VFD MS300 Micro Drive Accessories

Item #
CMM-COP01 MS300 CANopen Communication Card
CMM-PD01 MS/MH300 Profibus DP Communication Card
CMM-DN01 MS/MH300 DeviceNet Communication Card
CMM-MOD01 MS/MH300 Modbus TCP Communication Card
CMM-EIP01 MS/MH300 EtherNet/IP Communication Card
EG3010A Serial Keypad Extension Cable 3M
EMF10AM23A EMC Filter, 10A, 230V 3 Phase
EMF11AM21A EMC Filter, 11A, 230V Single Phase
EMF12AM43B EMC Filter, 12A, 460V 3 Phase
EMF23AM43B EMC Filter 23A, 460V 3 Phase
EMF24AM23B EMC Filter, 24A, 230V 3 Phase
EMF27AM21B EMC Filter, 27A, 230V Single Phase
EMF33AM23B EMC Filter, 33A, 230V 3 Phase
EMF6A0M43A EMC Filter, 6A, 460V 3 Phase
MKM-CBA NEMA 1 Kit, VFD-MS/MH300, Frame A3, A4 and A5
MKM-CBA0 NEMA 1 Kit, VFD-MS/MH300, Frame A1 and A2
MKM-CBB NEMA 1 Kit, VFD-MS/MH300, Frame B1, B2 and B3
MKM-CBC NEMA 1 Kit, VFD-MS/MH300, Frame C1 and C2
MKM-CBD NEMA 1 Kit, VFD-MS/MH300, Frame D1 and D2
MKM-CBE NEMA 1 Kit, VFD-MS/MH300, Frame E1 and E2
MKM-CBF NEMA 1 Kit, VFD-MS/MH300, Frame F1 and F2
MKM-DRB DIN Rail Kit, VFD-MS/MH300, Frame A or B
MKM-DRC DIN Rail Kit, VFD-MS/MH300, Frame C
MKM-MAPB Feed through Wiring Mounting Adapter Plate Kit, Frame A and B
MKM-MAPC Feed through Wiring Mounting Adapter Plate Kit, Frame C
BR080W200 Resistor 80W 200 Ohm
BR080W750 Resistor 80W 750 Ohm
BR1K0W016 Resistor 1000W 16 Ohm
BR1K0W020 Resistor 1000W 20 Ohm
BR1K0W075 Resistor 1000W 75 Ohm
BR1K0W4P3 Resistor 1000W 4.3 Ohm
BR1K5W013 Resistor 1500W 13 Ohm
BR1K5W043 Resistor 1500W 43 Ohm
BR200W091 Resistor 200W 91 Ohm
BR200W360 Resistor 200W 360 Ohm
BR300W070 Resistor 300W 70 Ohm
BR300W250 Resistor 300W 250 Ohm
BR400W040 Resistor 400W 40 Ohm
BR400W150 Resistor 400W 150 Ohm
