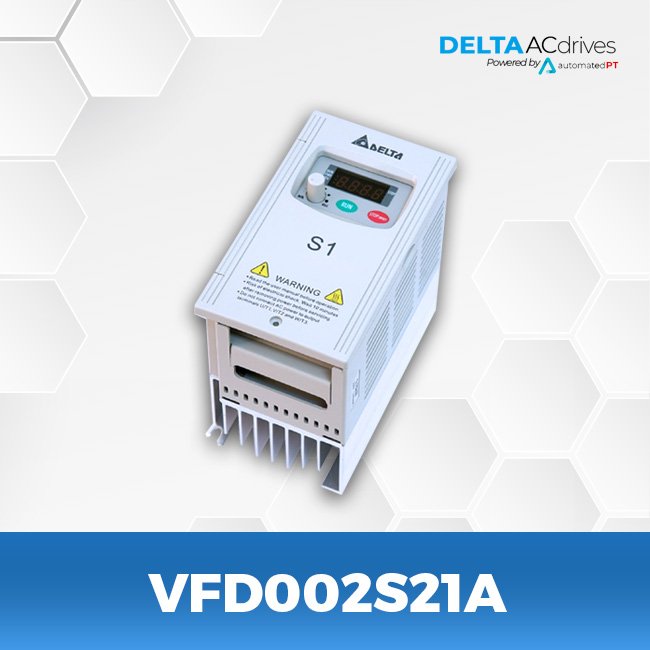

Delta VFD002S21A VFD-S Series Drive

  • Series: VFD-S
  • 0.25 HP
  • 0.1875 KW
  • 230 V
  • 1.6 A
  • Input: 1/3 PH
This product is no longer manufactured or sold. The Delta recommended replacement is the VFD1A6MS23ANSAA drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive


General Purpose AC Micro Drive. Delta Electronics’ most cost effective general purpose drive. The VFD-S series drive is famous for its low-noise carrier frequency feature and easy to use keypad. Applications: Air conditioner for large buildings; water supply system for large buildings; temperature control of middle/large oven; webbing loom; packing machine; conveyor belt; fan of drying machine, etc.

Delta VFD002S21A – Small and Easy Used Drives

Product Name AC Drive
PartNo VFD002S21A
Manufacturer Delta
Description Variable Speed AC Motor Drive

Manufacturer : Delta
RoHS:
Comm.: RS-485 (MODBUS)
Start-up Torque: 150% AT 5 HZ
Overload Endurance: 150% FOR 1 MINUTE
PG Close Loop: NO
PID/PLC Function: Simple PLC and In-Built PID
Control Mode: V/F
Braking Chopper: In-Built
Application: Elevator Door and Conveyor
Output Current: 1.6
Output Frequency (HZ): 1.00 TO 400 HZ
KW: 0.2
HP: 0.25
Voltage Class: 230V
Supply Type (A): 1

Click on the links below to see Drawings and Specs:

Delta VFD-S-Catalog

Delta VFD-S-User-Manual

Delta VFD-S-A-PD00 Spec Sheet
