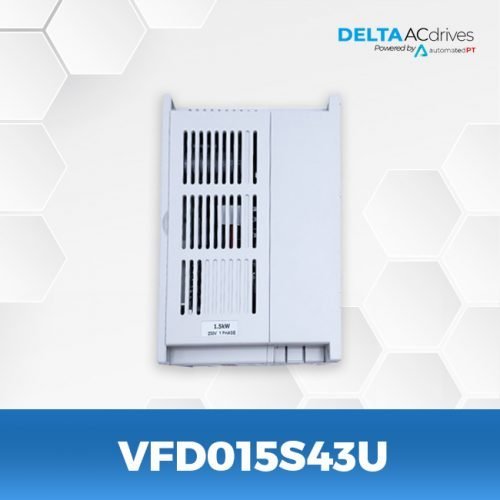

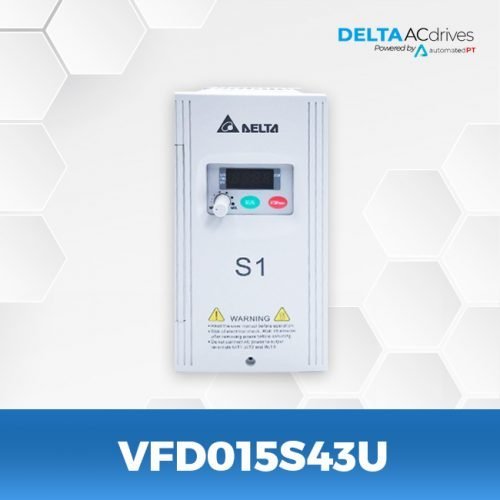

Delta VFD015S43U

General Purpose AC Micro Drive. Delta Electronics’ most cost effective general purpose drive. The VFD-S series drive is famous for its low-noise carrier frequency feature and easy to use keypad. Applications: Air conditioner for large buildings; water supply system for large buildings; temperature control of middle/large oven; webbing loom; packing machine; conveyor belt; fan of drying machine, etc.

Delta VFD015S43U

Delta VFD015S43U – Small and Easy Used Drives

Delta Products
AC Drives, VFD-S Series

ITEM # Delta VFD015S43U
MFG # Delta VFD015S43U
Series VFD-S

DRIVE AC 2HP 480V 3PH 2A

Specifications

Specifications for Delta Products VFD015S43U
Item Number: VFD015S43U
Manufacturer: Delta Products
Item Category: Drives
Subcategory: AC
Series: VFD-S
Nominal Input VAC: 480 Volts AC
Input Range VAC: 380 to 480 Volts AC
HP (CT): 2 Horsepower
Amps (CT): 2 Amps
Input Phase: 3
Operator Controls: Built In
Max. Frequency: 400 Hertz
Braking Type: DC Injection;Dynamic Braking
Motor Control-Max Level: V/Hz (Scalar)
Closed Loop: No
AC Line Regenerative?: No
Dynamic Braking Trans?: Included
Enclosure Rating: IP20

Click on the links below to see Drawings and Specs:

Delta VFD-S-Catalog

Delta VFD-S-User-Manual

Delta VFD-S-B-PD00 Spec Sheet

Purchase your Delta VFD015S43U NOW!

You Can Purchase your Delta AC Drive Panel’s with bypass and line reactor  HERE

! Please call, or email your Specs. !

Delta Standard Bypass Panel

Delta Bypass Panels play an important role in a system to reduce energy usage,optimize AC motor speed control, extend motor life, and reduce overall cost. The bypass capabilities allow the motor to be operated from either the Delta VFD or at full speed, directly across the line. The Delta Bypass Panel sets a benchmark for cost, performance, quality, and custom engineered bypass panels. Delta offers both the standard bypass panel, or our custom engineered panel to fulfill all your specification requirements.
