Sensorless Vector Micro AC Drive. The compact design is ideal for small and medium horsepower applications. The M drive is designed to provide an ultra-low-noise operation, and includes several innovative technologies that reduce interference.

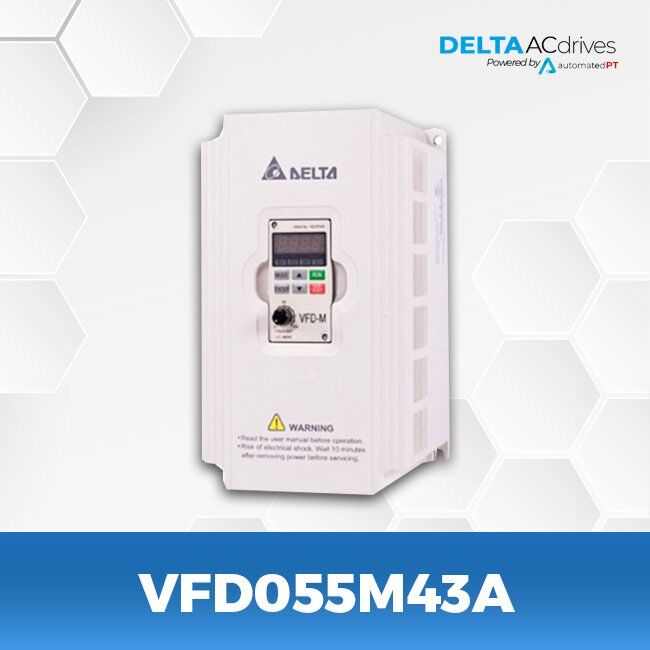

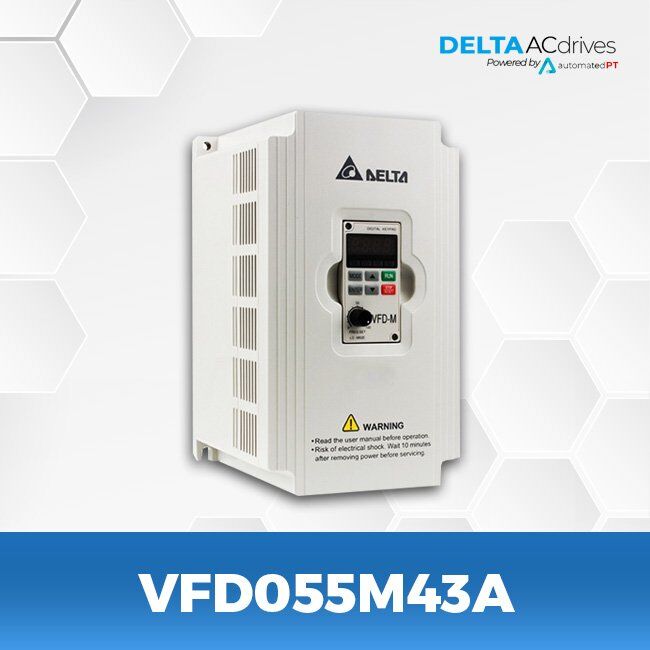

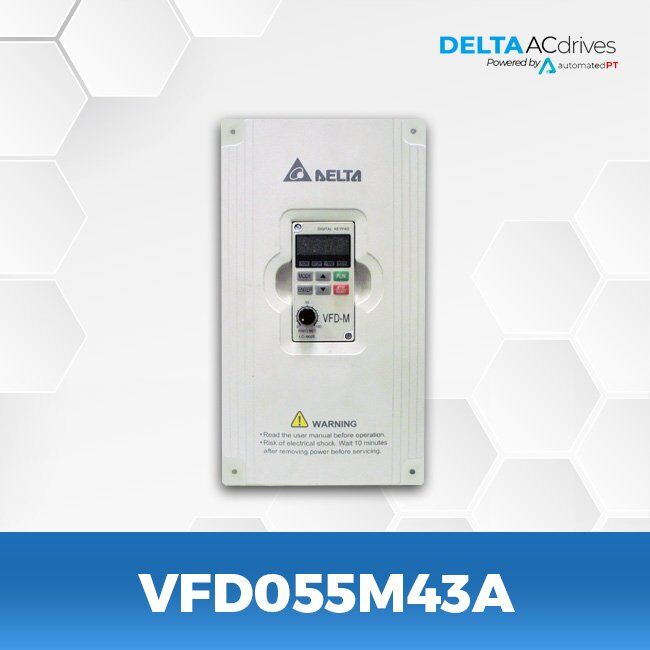

Delta VFD055M43A – SVC Micro Drives
AC Drives, VFD-M Series
ITEM # VFD055M43A
MFG # VFD055M43A
Drive, AC, 7.5Hp, 460V Three Phase Input
Item Number: VFD055M43A
Manufacturer: Delta Products
Item Category: Drives
Nominal Input VAC: 480 Volts AC
Input Range VAC: 380 to 480 Volts AC
HP (CT): 7.5 Horsepower
Amps (CT): 13 Amps
Input Phase: 3
Operator Controls: Keypad Included
Max. Frequency: 400 Hertz
Braking Type: DC Injection;Dynamic Braking
Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
Closed Loop: No
AC Line Regenerative?: No
Dynamic Braking Trans?: Included
Enclosure Rating: IP20

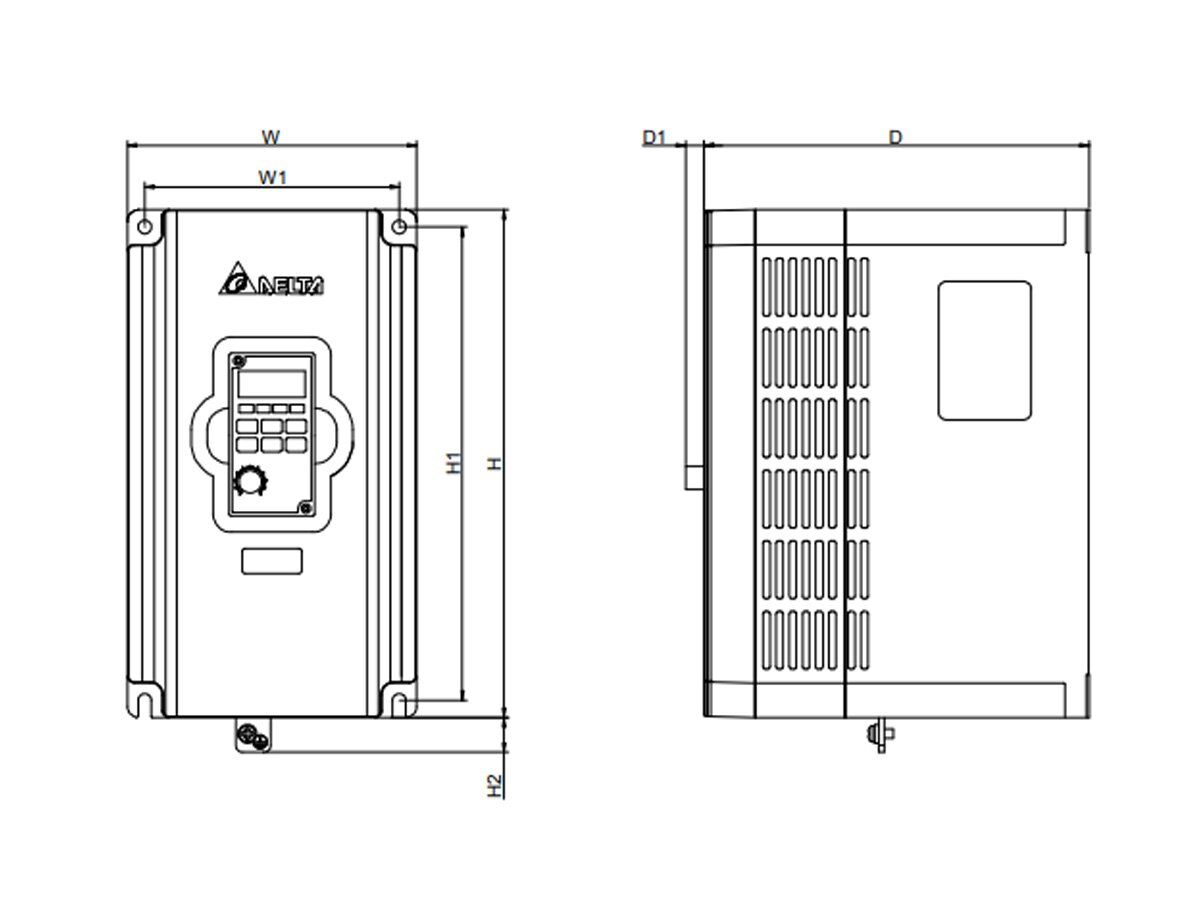

Click on the links below to see Drawings and Specs:
Purchase your Delta VFD055M43A TODAY!
You Can Purchase your Delta AC Drive Panel’s with bypass and line reactor HERE
! Please call, or email your Specs. !
Delta Bypass Panels play an important role in a system to reduce energy usage,optimize AC motor speed control, extend motor life, and reduce overall cost. The bypass capabilities allow the motor to be operated from either the Delta VFD or at full speed, directly across the line. The Delta Bypass Panel sets a benchmark for cost, performance, quality, and custom engineered bypass panels. Delta offers both the standard bypass panel, or our custom engineered panel to fulfill all your specification requirements.
