Delta DOP B10E515 Human Machine Interface

TP-70P_M

We provide all Delta AC Drives, VFD’s,  Delta AC Servo Motors, Delta Rotary Optical Encoders, Delta Motion Control Network, Delta Programmable Logic Controller, Delta Human Machine Interfaces, Delta Text Panels, Delta Temperature Controllers, Delta Industrial Fieldbus Solutions, Delta Pressure Sensor, Delta Brushless DC Motors as well as Delta Brushless DC Drives.

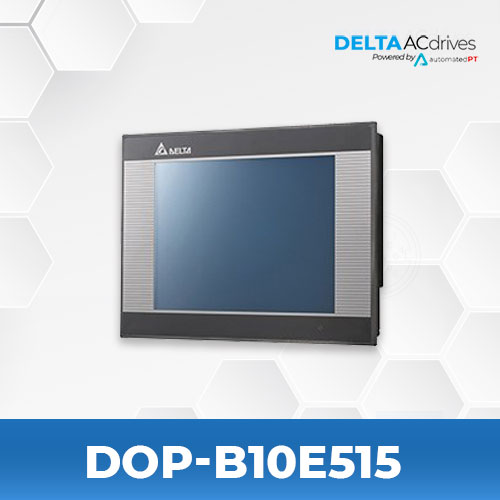

Delta 8″ High Resoultion with Ethernet DOP-B10E515

SPECIFICATIONS

10.4-inch (800 x 600 pixels) TFT LCD 65536 colors
3 sets of COM ports, supports RS-232 / RS-422 / RS-485
For data transfer/download: RS-232, USB , Ethernet
Supports USB Host for direct connection to USB disk, printer and mouse
Supports SD Card
Supports Ethernet
Supports audio output (MP3, Wav files)
Complies with IP65 standard
Supports horizontal / vertical display
PC editing software, DOPSoft is compatible with operating systems: Windows XP, Windows Vista, Windows 7

Downloads:
Delta DOP-B-User-Manual
Delta DOP-B-Catalog
See the Delta DOP-B10-E515 Human Machine Interface page on DeltaACDrives.com

PURCHASE YOUR DELTA DOP-B08E515 HUMAN MACHINE INTERFACE TODAY!
