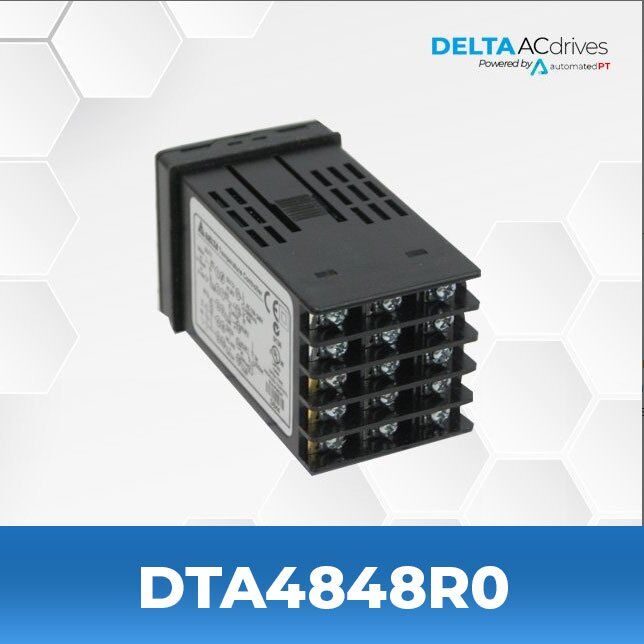

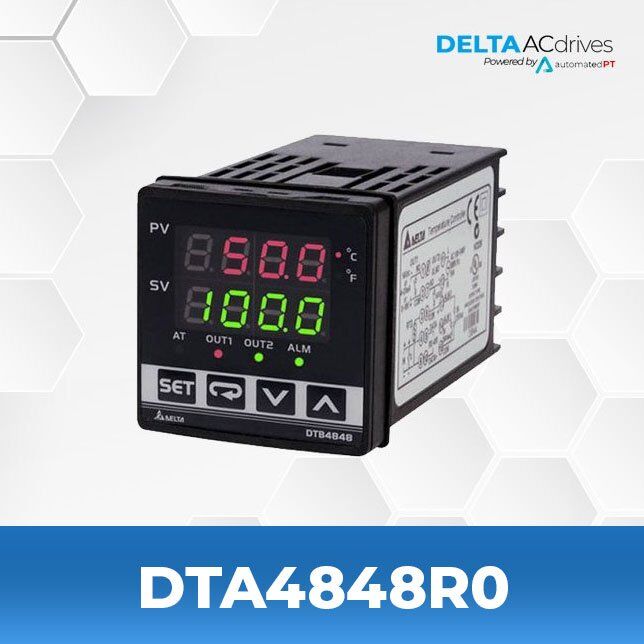

Delta DTA4848R0 DTA Controller

  • DTA Controller
  • COM Port – RS-485
  • Power Supply- 100-240V

We provide all Delta AC Drives, VFD’s,  Delta AC Servo Motors, Delta Rotary Optical Encoders, Delta Motion Control Network, Delta Programmable Logic Controller, Delta Human Machine Interfaces, Delta Text Panels, Delta Temperature Controllers, Delta Industrial Fieldbus Solutions, Delta Pressure Sensor, Delta Brushless DC Motors as well as Delta Brushless DC Drives.

Delta Temperature Controller DTA4848R0 – DTA Series

FEATURES

DTA series is designed for practical applications with 3 most-frequently adopted signal outputs in the industry and is built-in with various handy functions and transmission structure, ensuring fast and stable transmission of data.

SPECIFICATIONS

PID / On-Off/ manual input control modes
Auto-tuning PID parameters
Various thermocouple (B, E, J, K, L, N, R, S, T, U, TXK) and platinum RTD (PT100, JPT100) can be set by parameters
Built-in 2 groups of alarm switches with 13 alarm modes each
Celsius or Fahrenheit temperature display
2 key lock functions: (1. lock all keys; 2. lock only function key, up/down keys are still workable)
Panel size: 4848, 4896, 9648, 7272, 9696
Optional RS-485 communication interface (Modbus ASCII, RTU, baud rate: 2,400 ~ 38,400)
Optional CT (wire braking detection) function, an alarm output
Sampling time of sensor: 0.5 second/time
Certifications: IP5X protection, CE, UL

APPLICATIONS

Blower coil pipe in central air-conditioning system, heating system.

Manuals and Specifications:
Catalog Delta DT Series Temperature Controller Catalog
Instruction sheet Delta DTA Series Instruction Sheet
Instruction sheet Delta DTA Series Instruction Sheet(Multilingual)

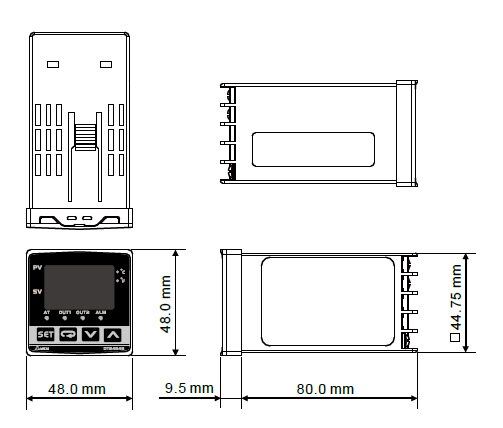

Dimensions Delta DTA4848 Dimensions
