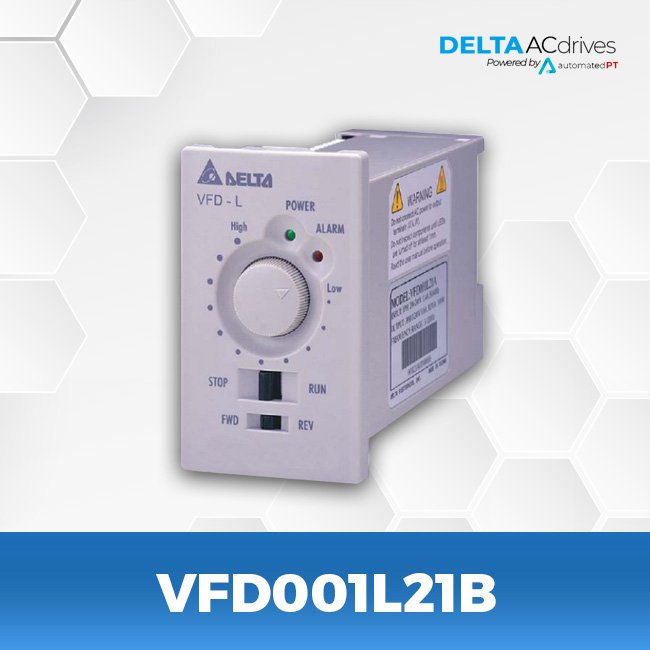

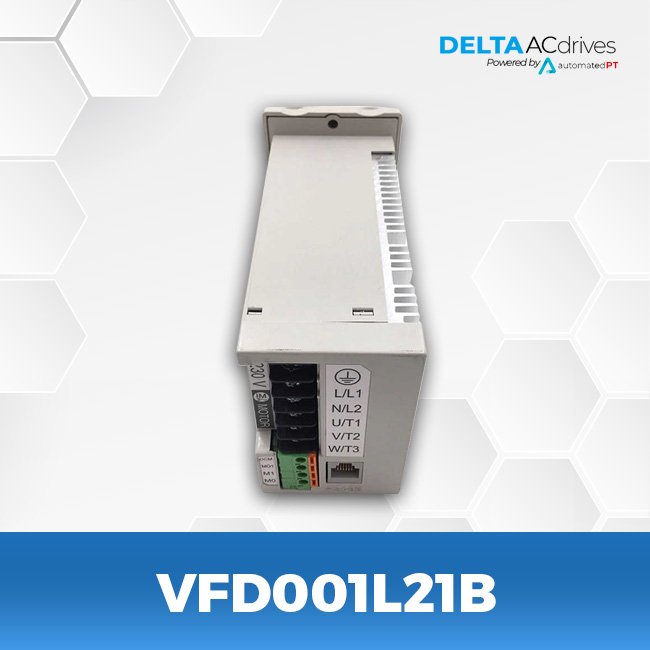

Delta VFD001L21B

Sub-fractional low cost AC Drive. Specifically designed for low horsepower applications with built-in EMI filter to efficiently reduce electromagnetic interference and to conform to the CE EMI directive.

Delta VFD L Inverter

Delta VFD001L21B – Compact and Panel-Installation Drives

Delta Products
AC Drives, VFD-L Series

ITEM # VFD001L21B
MFG # VFD001L21B
Series VFD-L

Drive, AC, 0.1HP, 240V, 1PH, 0.8A, CT Built In EMI Filter

Specifications
Item Number: VFD001L21B
Manufacturer: Delta Products
Item Category: Drives
Subcategory: AC
Series: VFD-L
Nominal Input VAC: 240 Volts AC
HP (CT): 0.1 Horsepower
Amps (CT): 0.8 Amps
Input Phase: 1
Operator Controls: Built In
Max. Frequency: 400 Hertz
Braking Type: DC Injection
Motor Control-Max Level: V/Hz (Scalar)
Closed Loop: No
AC Line Regenerative?: No
Dynamic Braking Trans?: Not Available
Frame Size: A2
Mounting: Panel
Comments: EMI Filter Included
Height: 3.94 Inches
Width: 2.36 Inches
Depth: 6.13 Inches
H x W x D (in.): 3.94 x 2.36 x 6.13

Click on the links below to see Drawings and Specs:

Delta VFD-L-User-Manual

Delta VFD-L-Catalog

Delta VFD-L-A-PD002 Spec Sheet

See the Delta VFD001L21B page on AutomatedPT.com

Purchase your Delta VFD001L21B TODAY!

You Can Purchase your Delta AC Drive Panel’s with bypass and line reactor  HERE

! Please call, or email your Specs. !

Delta Standard Bypass Panel

Delta Bypass Panels play an important role in a system to reduce energy usage,optimize AC motor speed control, extend motor life, and reduce overall cost. The bypass capabilities allow the motor to be operated from either the Delta VFD or at full speed, directly across the line. The Delta Bypass Panel sets a benchmark for cost, performance, quality, and custom engineered bypass panels. Delta offers both the standard bypass panel, or our custom engineered panel to fulfill all your specification requirements.
