Delta VFD007B23A VFD-B Series Drive

  • Series: VFD-B
  • 1 HP
  • 0.75 KW
  • 230 V
  • 5 A
  • Input: 1/3 PH
This product is no longer manufactured or sold. The Delta recommended replacement is the VFD4A8MS23ANSAA drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive

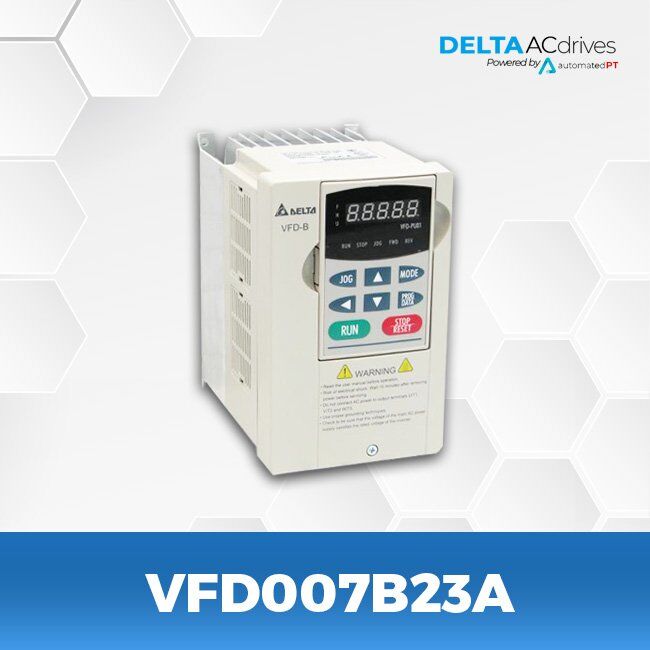

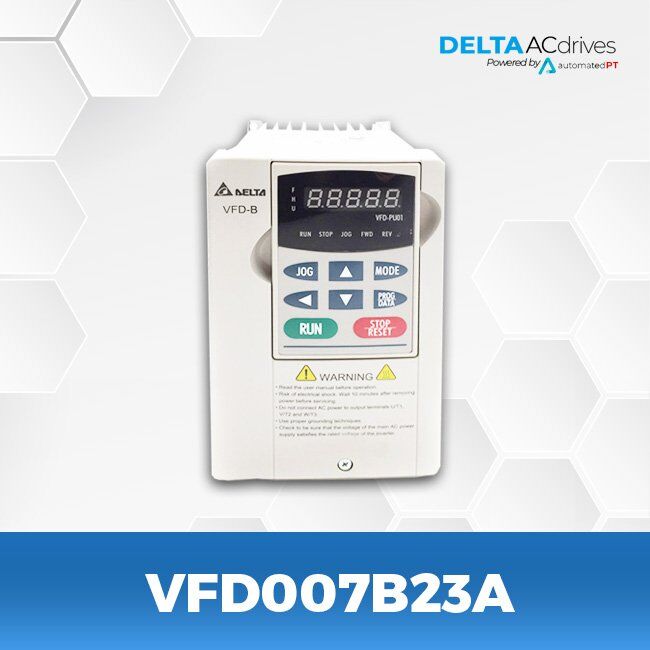

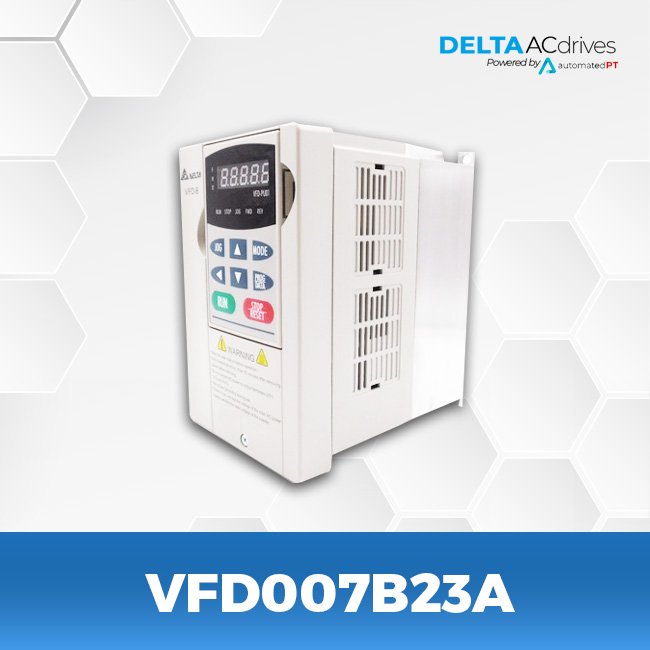

Delta VFD007B23A AC Drive

The Delta VFD-B series is a general purpose NEMA 1 drive and offers V/F, Sensorless Vector and Closed Loop Vector control. With its Constant Torque rating and 0-2000Hz output, the VFD-B is designed to handle most conventional drive applications found in the industrial manufacturing industry. The VFD-B series drives are used in many applications including: HVAC, Compressor, Crane Gantry, Elevator, Escalator, Material Handling, Water/Wastewater, and Woodworking to name a few.

Delta Products
Drive

ITEM # VFD007B23A
MFG # VFD007B23A

DRIVE AC 1HP 230V 3PH

Item Number: VFD007B23A
Manufacturer: Delta Products
Item Category: Drive

Specifications:

  • Output frequency 0.1 ~ 400 Hz
  • Adjustable V/f curve and vector control
  • Master/Auxiliary and 1st / 2nd frequency source selectable
  • 16-step speed control and 15-step preset speed process control
  • Built-in PID feedback control
  • Auto torque boost & slip compensation
  • Built-in MODBUS communication, baud rate up to 38400 bps
  • Support communication module (DN-02, LN-01, PD-01)

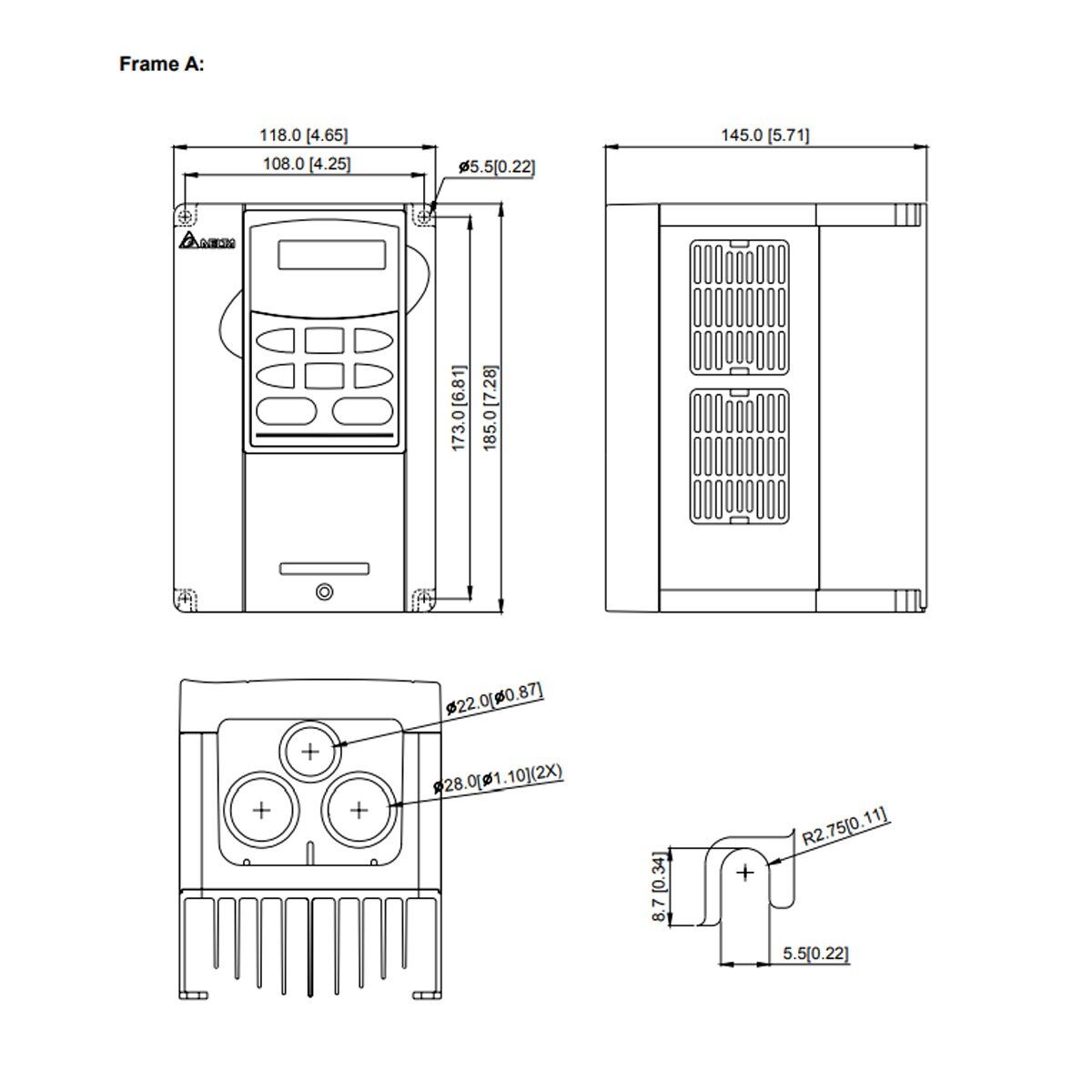

Click on the links below to see Drawings and Specs:

Delta VFD-B-User-Manual

Delta VFD-B-Catalog

Delta VFD-B-A-PD00 Spec Sheet

Delta Bypass Panels play an important role in a system to reduce energy usage,optimize AC motor speed control, extend motor life, and reduce overall cost. The bypass capabilities allow the motor to be operated from either the Delta VFD or at full speed, directly across the line. The Delta Bypass Panel sets a benchmark for cost, performance, quality, and custom engineered bypass panels. Delta offers both the standard bypass panel, or our custom engineered panel to fulfill all your specification requirements.
