Sub-fractional low cost AC Drive. Specifically designed for low horsepower applications with built-in EMI filter to efficiently reduce electromagnetic interference and to conform to the CE EMI directive.

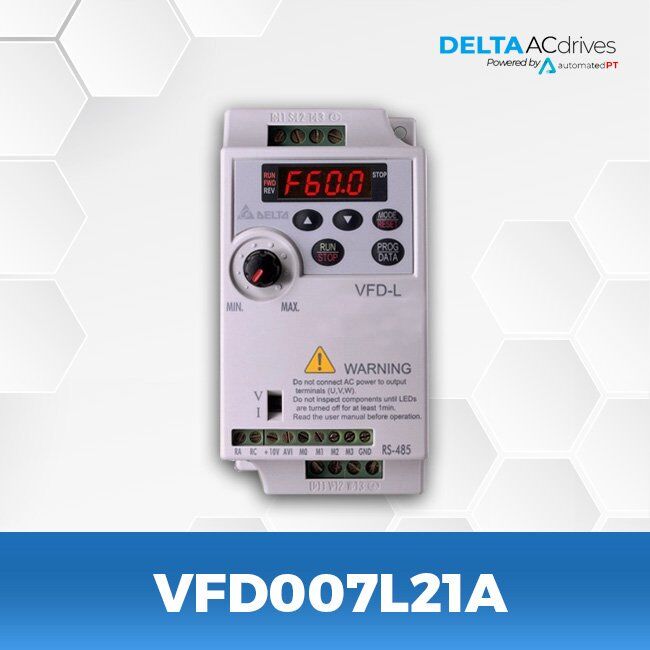

Delta VFD007L21A – Compact and Panel-Installation Drives
AC Drives, VFD-L Series
ITEM # VFD007L21A
MFG # VFD007L21A
Drive, AC, 1HP, 240V, 1PH/3PH, 4.2A, CT
Item Number: VFD007L21A
Manufacturer: Delta Products
Item Category: Drives
Nominal Input VAC: 240 Volts AC
HP (CT): 1 Horsepower
Amps (CT): 4.2 Amps
Input Phase: 1 or 3
Operator Controls: Built In
Max. Frequency: 400 Hertz
Braking Type: DC Injection
Motor Control-Max Level: V/Hz (Scalar)
Closed Loop: No
AC Line Regenerative?: No
Dynamic Braking Trans?: Not Available
Frame Size: B1
Height: 5.2 Inches
Width: 2.68 Inches
Depth: 5.04 Inches
H x W x D (in.): 5.2 x 2.68 x 5.04

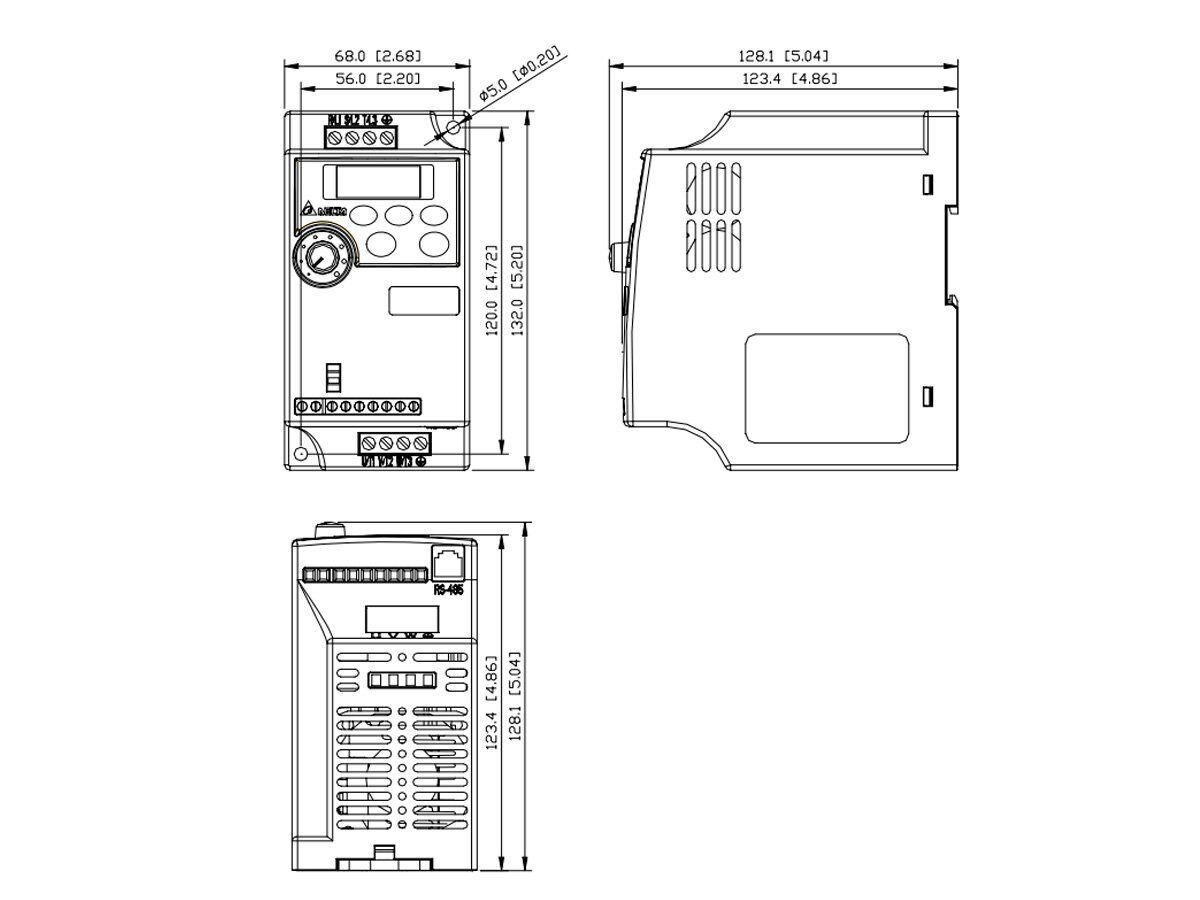

Click on the links below to see Drawings and Specs:
Purchase your Delta VFD007L21A TODAY!
You Can Purchase your Delta AC Drive Panel’s with bypass and line reactor HERE
! Please call, or email your Specs. !
Delta Bypass Panels play an important role in a system to reduce energy usage,optimize AC motor speed control, extend motor life, and reduce overall cost. The bypass capabilities allow the motor to be operated from either the Delta VFD or at full speed, directly across the line. The Delta Bypass Panel sets a benchmark for cost, performance, quality, and custom engineered bypass panels. Delta offers both the standard bypass panel, or our custom engineered panel to fulfill all your specification requirements.
