This series adopts FOC (Field Oriented Control) which is a far more precise vector control algorithm. It can be used in both speed control and position control similar to a servo motor drive. The multi-function I/O terminal is expanded to meet users’ various application needs. In addition, it is supplied with a Windows based PC software program for managing parameters and dynamic monitoring. It provides an excellent solution for load regulation. It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control, making it the best choice for challenging industrial control applications.
AC Drives, VFD-VE Series

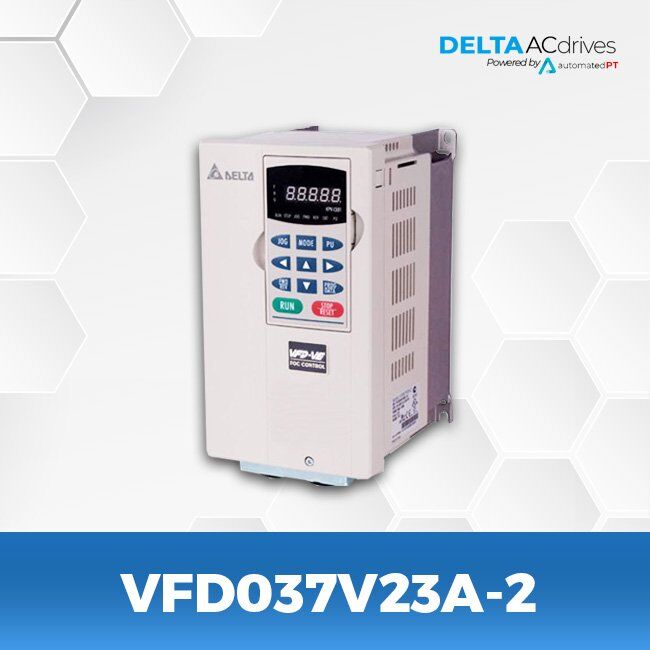

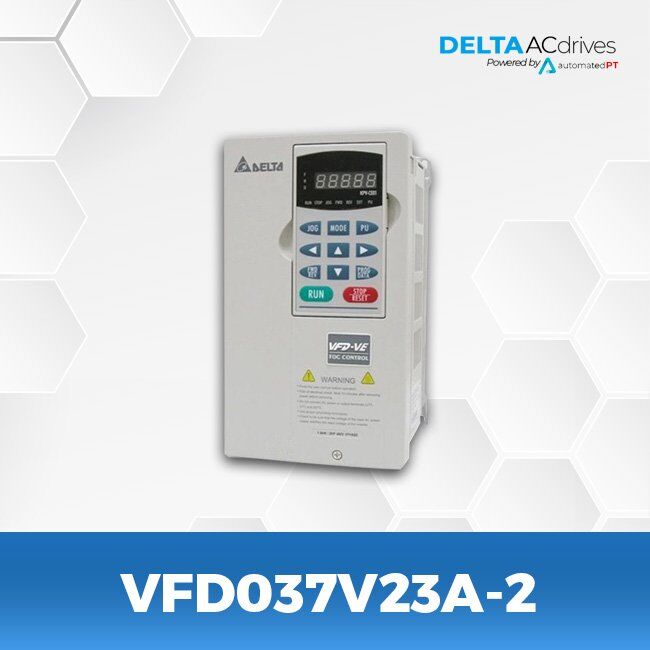

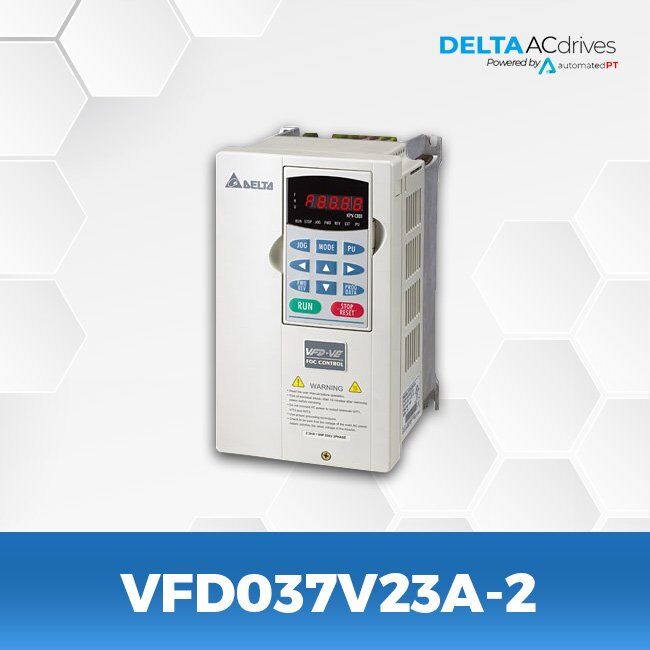

ITEM # VFD037V23A-2
MFG # VFD037V23A-2
Drive, AC, 5Hp Three Phase 230V Input
Item Number: VFD037V23A-2
Manufacturer: Delta Products
Item Category: Drives
Nominal Input VAC: 208;240 Volts AC
Input Range VAC: 200 to 240 Volts AC
HP (CT): 5 Horsepower
Amps (CT): 17 Amps
HP (VT): 7.5 Horsepower
Amps (VT): 21 Amps
Input Phase: 3
Operator Controls: Keypad Included
Max. Frequency: 600 Hertz
Braking Type: DC Injection;Dynamic Braking
Motor Control-Max Level: Closed Loop Vector
Closed Loop: Yes
AC Line Regenerative?: No
Dynamic Braking Trans?: Included
Enclosure Rating: NEMA 1;IP20

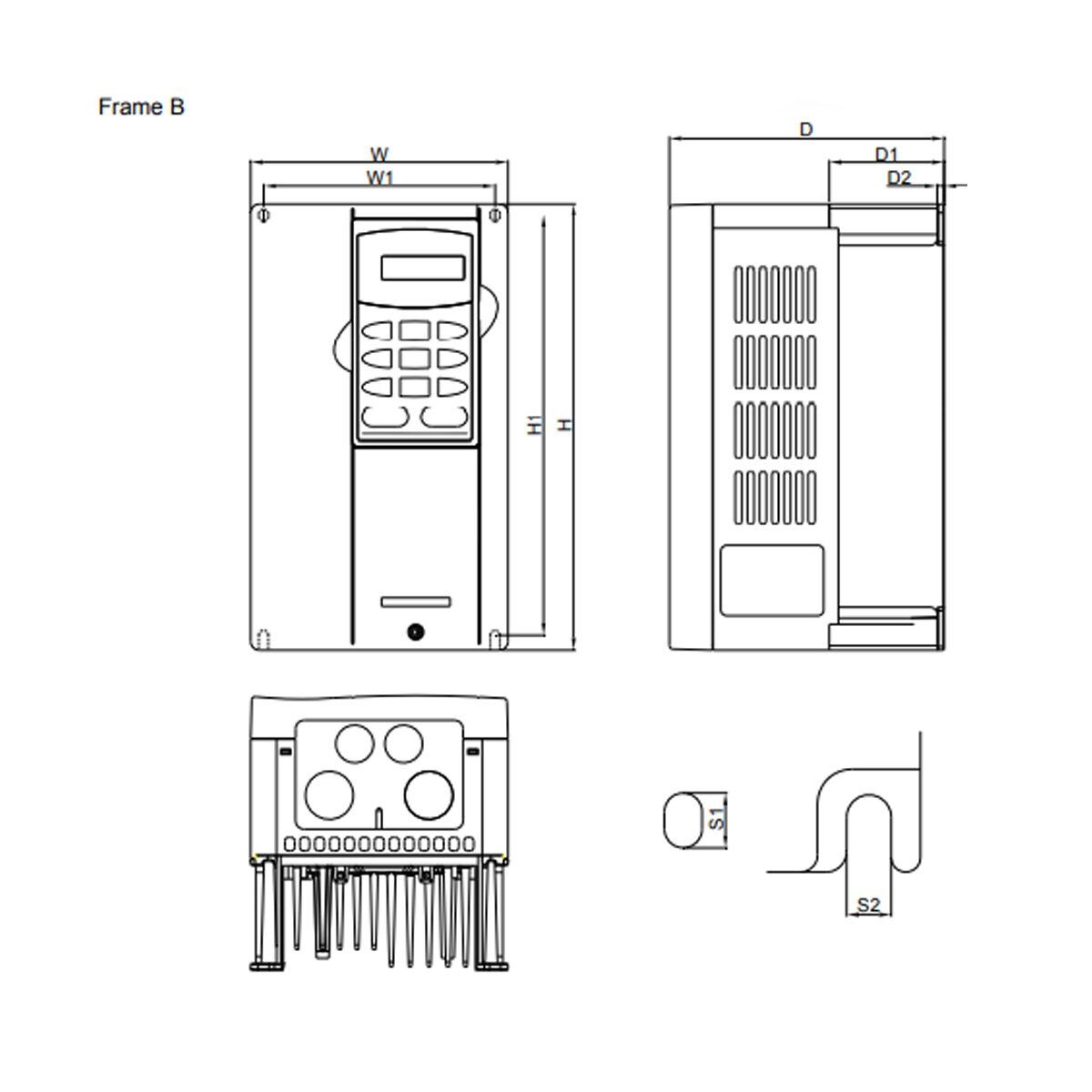

Click on the links below to see Drawings and Specs:
Purchase your Delta VFD037V23A-2 TODAY!
You Can Purchase your Delta AC Drive Panel’s with bypass and line reactor HERE
! Please call, or email your Specs. !
Delta Bypass Panels play an important role in a system to reduce energy usage,optimize AC motor speed control, extend motor life, and reduce overall cost. The bypass capabilities allow the motor to be operated from either the Delta VFD or at full speed, directly across the line. The Delta Bypass Panel sets a benchmark for cost, performance, quality, and custom engineered bypass panels. Delta offers both the standard bypass panel, or our custom engineered panel to fulfill all your specification requirements.
