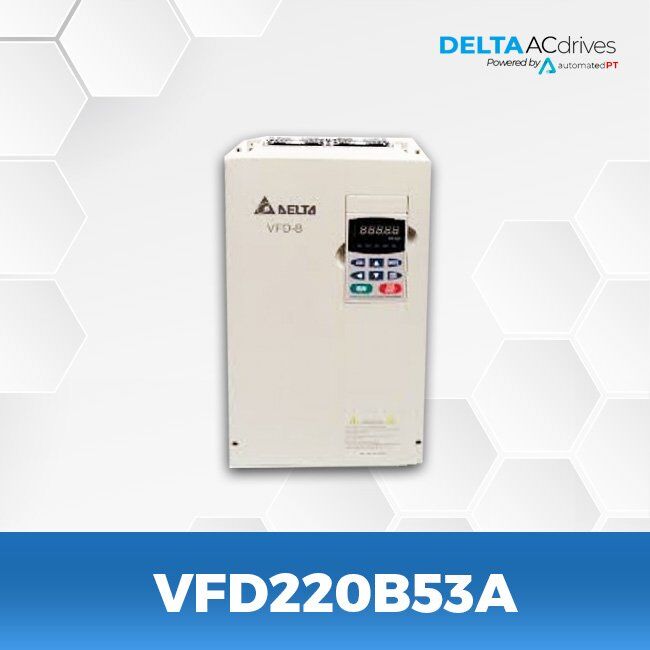

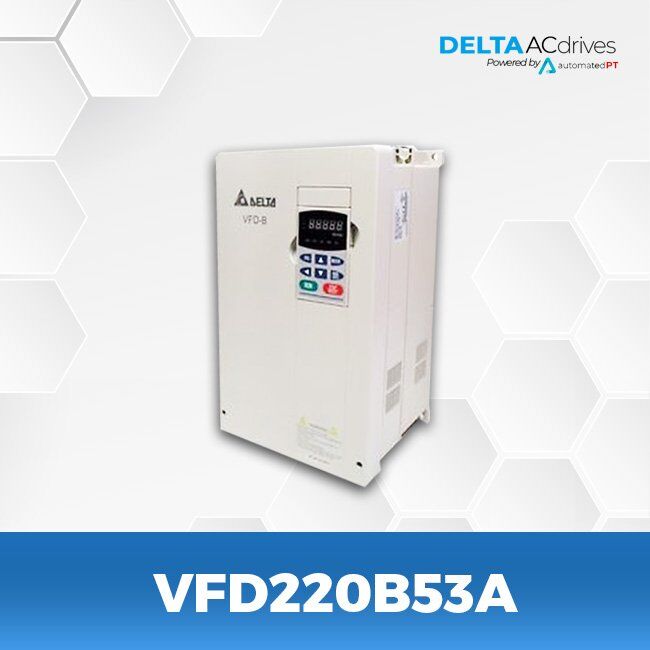

Delta VFD220B53A AC Drive
The Delta VFD-B series is a general purpose NEMA 1 drive and offers V/F, Sensorless Vector and Closed Loop Vector control. With its Constant Torque rating and 0-2000Hz output, the VFD-B is designed to handle most conventional drive applications found in the industrial manufacturing industry. The VFD-B series drives are used in many applications including: HVAC, Compressor, Crane Gantry, Elevator, Escalator, Material Handling, Water/Wastewater, and Woodworking to name a few.
AC Drives, VFD-B Series
ITEM # VFD220B53A
MFG # VFD220B53A
Drive, AC, 30Hp Three Phase 575V Input
Item Number: VFD220B53A
Manufacturer: Delta Products
Item Category: Drives
Nominal Input VAC: 575 Volts AC
Input Range VAC: 500 to 600 Volts AC
HP (CT): 30 Horsepower
Amps (CT): 34 Amps
Input Phase: 3
Operator Controls: Keypad Included
Max. Frequency: 400 Hertz
Braking Type: DC Injection;Dynamic Braking
Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
Closed Loop: No
AC Line Regenerative?: No
Dynamic Braking Trans?: Optional (External)
Enclosure Rating: NEMA 1;IP20

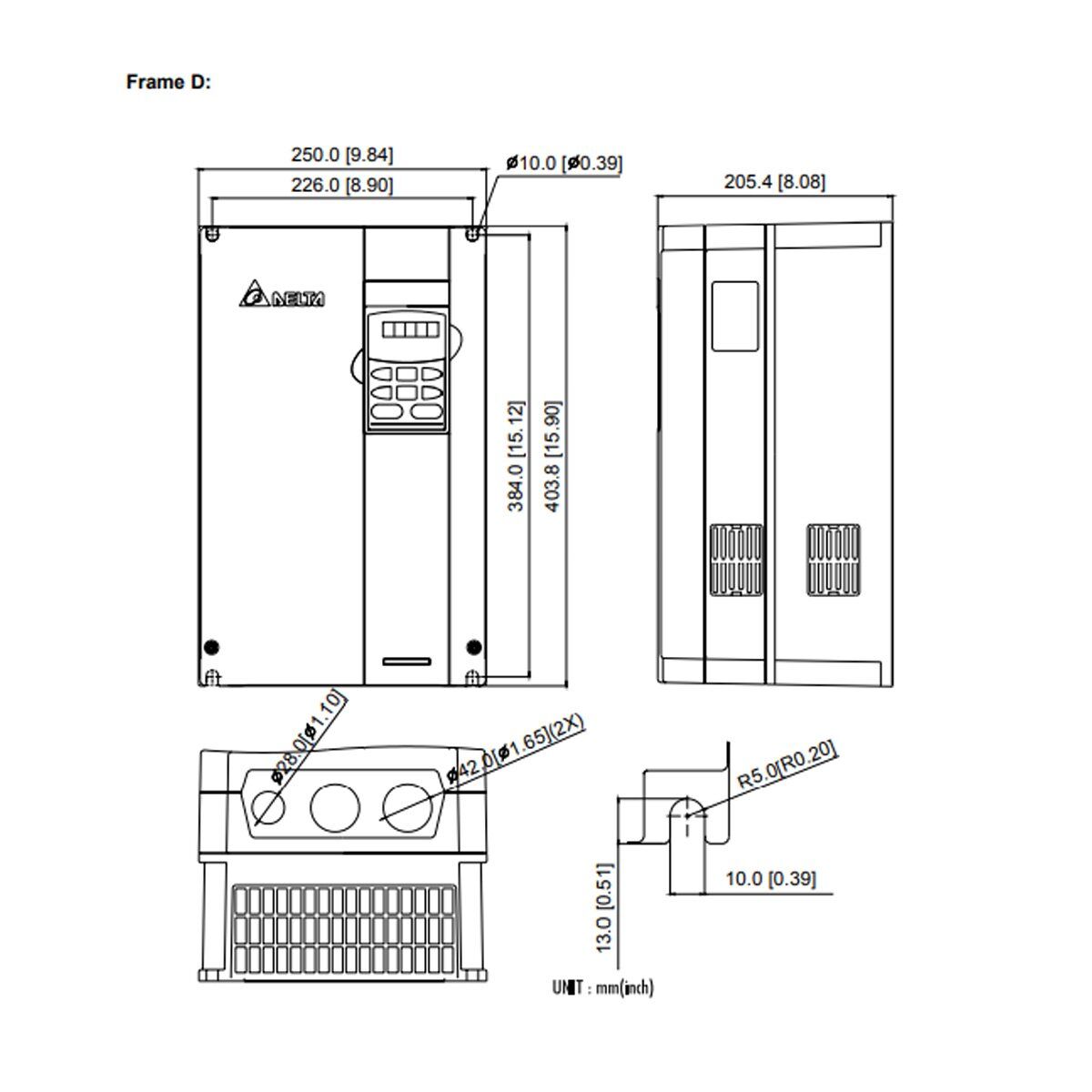

Click on the links below to see Drawings and Specs:
Purchase your Delta VFD220B53A TODAY!
You Can Purchase your Delta AC Drive Panel’s with bypass and line reactor HERE
! Please call, or email your Specs. !
Delta Bypass Panels play an important role in a system to reduce energy usage,optimize AC motor speed control, extend motor life, and reduce overall cost. The bypass capabilities allow the motor to be operated from either the Delta VFD or at full speed, directly across the line. The Delta Bypass Panel sets a benchmark for cost, performance, quality, and custom engineered bypass panels. Delta offers both the standard bypass panel, or our custom engineered panel to fulfill all your specification requirements.
