Delta VFD400WL21A VFD-L Series Drive

  • Series: VFD-L
  • 0.5 HP
  • 0.375 KW
  • 240 V
  • 0.4 A
  • Input: 1/3 PH
This product is no longer manufactured or sold. The Delta recommended replacement is the VFD2A8MS23ANSAA drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive


Sub-fractional low cost AC Drive. Specifically designed for low horsepower applications with built-in EMI filter to efficiently reduce electromagnetic interference and to conform to the CE EMI directive.

Delta VFD400WL21A – Compact and Panel-Installation Drives

Delta Products
AC Drives, VFD-L Series

ITEM # VFD400WL21A
MFG # VFD400WL21A
Series VFD-L

Drive, AC, 0.1HP, 120V, 1PH, 0.8A, CT

Specifications
Item Number: VFD400WL21A
Manufacturer: Delta Products
Item Category: Drives
Subcategory: AC
Series: VFD-L
Nominal Input VAC: 120 Volts AC
HP (CT): 0.1 Horsepower
Amps (CT): 0.8 Amps
Input Phase: 1
Operator Controls: Built In
Max. Frequency: 400 Hertz
Braking Type: DC Injection
Motor Control-Max Level: V/Hz (Scalar)
Closed Loop: No
AC Line Regenerative?: No
Dynamic Braking Trans?: Not Available
Frame Size: A1
Mounting: Panel

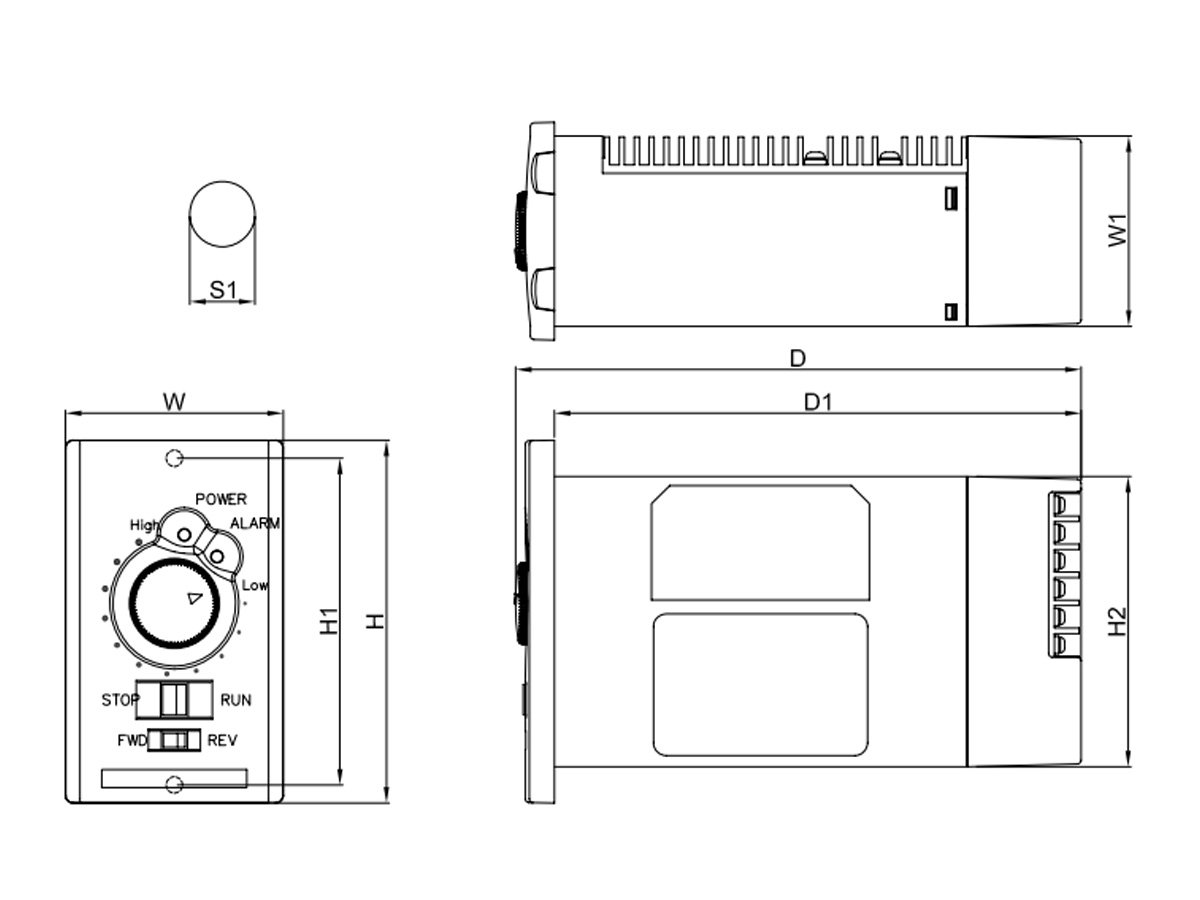

Height: 3.94 Inches
Width: 2.36 Inches
Depth: 5.34 Inches
H x W x D (in.): 3.94 x 2.36 x 5.34

Click on the links below to see Drawings and Specs:

Delta VFD-L-User-Manual

Delta VFD-L-Catalog

Delta VFD-L-A-PD01 Spec Sheet
