Delta VFD-V Flux Vector Control AC Motor Drivers – Flux Vector/Torque Control AC Drive. Offering V/F, Open Loop, Closed Loop and high speed control options. All VFD-V series drives are constant and variable torque rated. This NEMA 1rated flux vector drive is capable of 0-3000Hz in V/F mode, and offers rapid response, pinpoint servo position control and speed adjustment. Applications: Woodcarving machine; crane hoisting; drilling machine; CNC lathe; tooling machine; middle/low-speed passenger elevator; PCB routing machine, etc.
AC Drives, VFD-VE Series

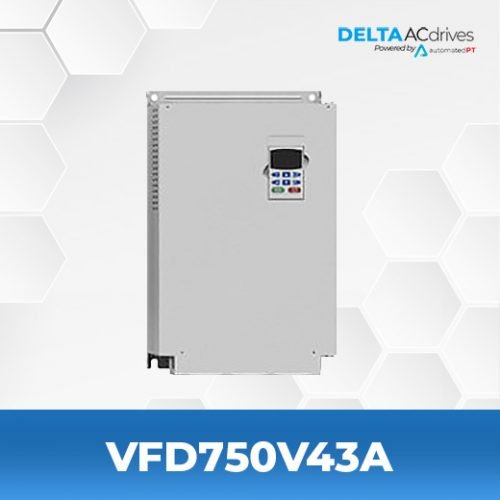

ITEM # VFD750V43A
MFG # VFD750V43A
Drive, AC, 100Hp Three Phase 460V Input
Item Number: VFD750V43A
Manufacturer: Delta Products
Item Category: Drives
Nominal Input VAC: 480 Volts AC
Input Range VAC: 380 to 480 Volts AC
HP (CT): 100 Horsepower
Amps (CT): 150 Amps
HP (VT): 125 Horsepower
Amps (VT): 188 Amps
Input Phase: 3
Operator Controls: Keypad Included
Max. Frequency: 600 Hertz
Braking Type: DC Injection;Dynamic Braking
Motor Control-Max Level: Closed Loop Vector
Closed Loop: Yes
AC Line Regenerative?: No
Dynamic Braking Trans?: Optional (External)
Enclosure Rating: NEMA 1;IP20
Click on the links below to see Drawings and Specs:
Purchase your Delta VFD750V43A TODAY!
You Can Purchase your Delta AC Drive Panel’s with bypass and line reactor HERE
! Please call, or email your Specs. !
Delta Bypass Panels play an important role in a system to reduce energy usage,optimize AC motor speed control, extend motor life, and reduce overall cost. The bypass capabilities allow the motor to be operated from either the Delta VFD or at full speed, directly across the line. The Delta Bypass Panel sets a benchmark for cost, performance, quality, and custom engineered bypass panels. Delta offers both the standard bypass panel, or our custom engineered panel to fulfill all your specification requirements.
